ALM Rangers blog - Sending Email Notification from VSTS/TFS Build

Please read my post on the Microsoft ALM Rangers blog regarding sending notification emails from Build vNext.

Blog Post

Running a VSTS Build Agent on a Windows Container

In my previous blog post, I wrote about running a VSTS build agent on a docker container. So, it was only logical to try it out on a Windows Container. I had a few pitfalls in my quest to do that and found an issue on my way, however. it all worked in the end.

Note:

At the time of writing this blog, running vsts agent is not supported on Windows Nano server. I could only manage to run it on microsoft\windowsservercore image.

Window Server 2016 and Windows Containers

Windows Server 2016 comes with a full container support powered by built-in operating system features. There is a great session on the internals of windows container on channel9. There are two mechanisms of setting up containers on Windows - Hyper-V Containers which are effectively light weight virtual machines and Windows Containers. I am going to use Windows Containers

1. Windows 2016 Virtual Machine

To host my containers, I got a Windows 2016 virtual machine going. At the time of writing this blog, Windows Server 2016 is still at Technical Preview 2 stage and new updates are coming frequently. They can be downloaded from the Microsoft website.

The minimum build you will require is Windows 2016 Server build 14393.

Once you have installed windows and are on the virtual machine, open command prompt and type in winver. You will see a dialog like this. Make sure the build number is at least the required version

2. Install Containers Feature

Type in the following command in a PowerShell console window

Install-WindowsFeatures Containers

The feature needs a restart so type in the following

Restart-Computer -Force

Once the machine is restarted, continue with following

3. Install Docker

The docker version deployed from the msi isn't supported on Windows Server 2016 yet. For me downloading the docker msi from the docker website didn't work and I got the following error

However, got it working by downloading the following zip file

https://download.docker.com/components/engine/windows-server/cs-1.12/docker.zip

and extracting it to Program Files. I did it by running the following in my PowerShell console

Invoke-WebRequest "https://download.docker.com/components/engine/windows-server/cs-1.12/docker.zip" -OutFile "$env:TEMP\docker.zip" -UseBasicParsing

You will have two executable files in the extracted directory as shown

Add the directory to your path variable.

Now register the dockerd service by typing the following

dockerd.exe --register-service

Alternate Installation Option

After installing docker, I found that the following was a better and easier way of install docker on Windows Server 2016. Type in the following in your powershell console.

Install-Module -Name DockerMsftProvider -Repository PSGallery -Force

Install-Package -Name docker -ProviderName DockerMsftProvider

Restart-Computer -Force

Once installed, verify that docker is running fine your machine by type in the following

docker run microsoft/sample-dotnet

You should see a message of the like "Welcome to .Net Core!" on your console window. This means that your docker instance is working fine.


4. Pulling microsoft/windowservercore image

So, this is where I got stuck a bit. I was trying to use microsoft/nanoserver, which is a fraction of a size of full windows image and support .Net Core. In the end, I found out that running vso agent on server on nano server is not supported yet.

So, I pulled the full server core image. You can do it by running

docker pull microsoft/windowsservercore

The image is about 8GB and takes some time to download. Once pull, run the image by typing in

docker run microsoft/windowsservercore

At this stage, we are on a windows docker container running Windows 10. I checked in by typing [System.Environment]::OSVersion.Version and got the following version

Major  Minor  Build  Revision
-----  -----  -----  --------

10     0      14393  0


5. Running VSTS Agent

Now that we have a running container, the steps to run VSO Agent is as simple as running it on any Windows 10 machine.

The only complication is the lack of GUI, so I used powershell to download zip file and extract it as follows

Invoke-WebRequest https://github.com/Microsoft/vsts-agent/releases/download/v2.108.0/vsts-agent-win7-x64-2.108.0.zip -outfile vsts-agent-win7-x64-2.108.0.zip

Expand-Archive -Path .\vsts-agent-win7-x64-2.108.0.zip -DestinationPath C:\vsts-agent

You will see the usual vsts agent's files in the destination directory. Simply type in .\config.cmd and follow instructions.

Set up a VSTS Build Agent on a Docker Container

In my last blog post, I wrote about setting up .Net core on an Ubuntu 16.04 machine. In this post, I will go a step forward and explain how to set up a container to run as your build agent.

Containers are brilliant in that they provide a rather lightweight mechanism of setting up desired software in your build agent without installing it on host machine or in a virtual machine. In this post, I will explain setting up a Docker container on a Windows 10 machine, install all the desired software  for build agent and running a build to compile an ASP.net core application on it.

This post is split into following areas

• Setting up Docker on a Windows 10 machine
• Create a Docker image to run Build Agent.
• Configure and run a Build Agent on Docker.
• Run a Build on the newly setup Build Agent.

Set up a Docker container on a Windows 10 machine

Docker on windows uses Hyper-V to create a linux virtual machine, The Docker daemon is run on this virtual machine.This means that you need at least Windows 10 professional to run Docker. We are using Windows 10 Enterprise.

To install Docker visit the site https://docs.docker.com/docker-for-windows/ and install the .MSI by clicking the "Get Docker for Windows (stable)" button. The installation will setup Docker for you, by setting up a VM called MobyLinxuVM. It would also add Docker's bin directory to your path, so that the Docker command is available in your command window.

Every docker deployment has a "hello-world" image. To test docker, type in

docker run -it hello-world

You should see the text "Hello from Docker!" in your response.

Create a Docker image to run Build Agent

Now that docker we have a Docker instance running, lets set up a Docker image with all the software needed to run a build agent. The VSO build agent is Node.js based so installing Node.js and it's pre-requisites is a requirement. Also, since the build agent is going to build .Net Core core, we would also be installing .Net core.

To start with, we get a Docker image with the latest version of Ubuntu. At the time of writing this post, the latest version available was 16.04. So we start with getting this version. To do this run

docker run Ubuntu:16.04.

It would look for the instance locally and if it's not found download it from Docker hub. Once the command is complete, the Docker Ubuntu 16.04 image will appear in your “docker images” command

We now install Node.js, npm and vso agent onto the image and store it as another image. To do that the first step is to run the Ubuntu:16.04 image as a container. To do that, run the following command.

docker run -t -i Ubuntu:16.04

You will now be on command prompt of root. To run the desire software, run the following commands one after another

apt-get update
apt-get install npm nodejs
apt-get install nodejs-legacy
npm install vsoagent-installer –g

My Ubuntu 16.04 instance didn't have https protocol installed, so installed it by running

apt-get install apt-transport--https

We will also need to install git on it

apt-get install git

Now, to install .Net Core run the following

sh -c 'echo "deb [arch=amd64] https://apt-mo.trafficmanager.net/repos/dotnet-release/ xenial main" > /etc/apt/sources.list.d/dotnetdev.list'

apt-key adv --keyserver apt-mo.trafficmanager.net --recv-keys 417A0893
apt-get update

apt-get install dotnet-dev-1.0.0-preview2-003131

At this stage, the container contains all the software that you need to run a vso build agent.

Configure and run Build Agent

The only thing left to do now is to configure the build agent. The agent installer allows us to easily create multiple agents on a single server. Each agent will run inside its own folder. We create a folder called MyBuildAgent1 and uses it to run the agent. To do this run the following commands

mkdir MyBuildAgent1
cd MyBuildAgent1
vsoagent-installer

All commands so far has been run using the root user. We don't want to run the build agent to run as root, so will create a user called buildagentuser and switch to it to use it. Below are the command that you need to run.

adduser buildagentuser
chown -R buildagentuser /MyBuildAgent1

The build agent is almost ready to run. At this stage we want to commit this container to save the image. This way we can use it again.

Step out of Docker container by pressing CTRL+P followed by CTRL+Q. You will be back to command prompt. Now type in "docker ps" to view the list of containers running. You will see a response like following




Here, the ubuntu:16.04 running container has the Id "aea7e12541d5". We will commit this container to create a new image. To do this, type in the following on your command prompt

docker commit -a "Hamid Shahid" -m "Basic vso .net core build agent" aea7e12541d5 basicvsogent:v1

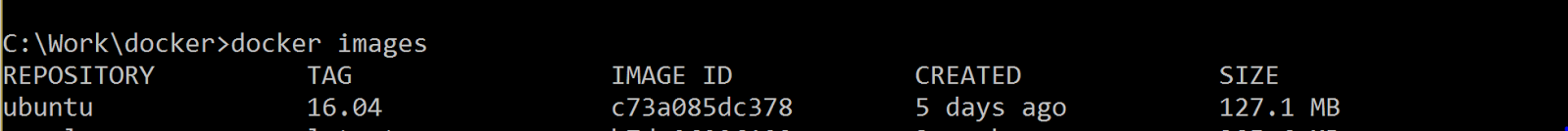

If you are following instructions, please use your container id. You can verify it by running "docker images". You will see the new image in the list of images



Since, we just "stepped out" of Docker container we were working now, we will now reattach it and run the build agent. To do this type in

docker attach aea7e12541d5

Now start the build agent by running

node agent/vsoagent

You will be prompted about your VSTS url and the credentials to connect to. I used the following options in the prompt



The user you specify must have the service "Service Account" role in the agent pool you specified. In my case, I had added them to the VSTS group "Agent Pool 1 Service Account Users".


.
Now that my build agent is now running, I will create now create a simple build definition to run the build. We had already created a simple .Net core Asp.net application.

Run a build on the new build agent

We will now create a very simple build definition and execute it on the new agent. Our build definition has three simple steps.

1) In the first step, invoke dotnet with the argument "restore".

2) In the second, invoke dotnet with the argument "build". Make sure, you set the working folder to the source directory

3) In the third step, set the contents to "**/*.dll".

Since, we used the Default Build Pool, set it to use the default build agent.  Now run the build and let's monitor the build agent command window. We should see messages regarding the statue of the build job.

This is so awesome. Now that we have the Docker image captured as well, we can start other build agents and distribute our build load across containers. This is far more efficient than running virtual machines as build agents.

The above would only work for dot net core applications. In my next post, I will write about how to set up VSTS agents on Windows Containers, where we would also have the ability to build .Net applications.

Installing .Net Core on Ubuntu 16.04 LTS

The recent development by Microsoft in the ASP.Net core space is fascinating. With the introduction of ASP.Net Core 1.0 at the start of the year and then the recently released ASP.Net Core 1.0 RC2, I thought it would be a good idea to try it out on a Linux box.

The installation proved to be a bit trickier than I thought, so sharing my experience so as to help other out. The flavour of Linux I used was Ubuntu 16.04 LTS.

At the time of writing this post, the instructions present on Microsoft .Net Core website are for Ubuntu 14.04. Tried to follow the steps described on the website. However, execute dotnet failed with the following error on my machine

Failed to initialize CoreCLR, HRESULT: 0x80131500

So tried to proceed with some other steps. In general, installing .Net on Ubuntu require the following steps

1) Add .net repo to trusty sources list
2) Add key for the newly added trusted source
3) Install dotnet


To do the above, open up a terminal on your Ubuntu machine.

To add repo, run the following command

sudo sh -c 'echo "deb [arch=amd64] http://apt-mo.trafficmanager.net/repos/dotnet/ trusty main" > /etc/apt/sources.list.d/dotnetdev.list'

To add the key, run the following command

sudo apt-key adv --keyserver apt-mo.trafficmanager.net --recv-keys 417A0893

Once, the above done, it's bes to update everything by running

sudo apt-get update

 Now that everything is done, .Net can be installed by running

sudo apt-get install dotnet

The above command, however, didn't work for me. It failed with the following error

The following packages have unmet dependencies: dotnet : Depends: libicu52 (>= 52~m1-1~) but it is not installable E: Unable to correct problems, you have held broken packages.

The error is quite self-descriptive, and the answer is to install libicu package. Ran the commnad

sudo apt-get install libicu-dev

The above command installed the libicu55 on my machine, whilst .Net core has a dependency on libicu52. Fortunately, the package is available for download here.

Once downloaded, the package can be installed by running

sudo dpkg -i libicu52_52.1-3ubuntu0.4_amd64.deb

Now that the pre-requisite is installed, installing dotnet is simply a matter of running the following

sudo apt-get install dotnet

The above worked for me this time around. To test that it installed correctly, just type dotnet new in a new folder. It will create files for your .net project.

Please Note: Make sure that you set permissions to execute downloaded files described in this post.
